Surface mount thin film fixed inductor with 8.2nH inductance and 5% tolerance, rated for 250mA DC current. Features a 0201 package size, 0.7 Ohm DC resistance, and a Q factor of 14 at 500MHz. Operates across a wide temperature range from -55°C to 125°C, with a self-resonant frequency of 3.6GHz. This unshielded, non-magnetic component is supplied on tape and reel.
Package0201
Current Rating250mA
MountingSurface Mount
Inductance8.2nH
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Murata LQP03TN8N2J02D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Murata LQP03TN8N2J02D technical specifications.
General
| Case Code (Imperial) | 0201 |
| Case Code (Metric) | 0603 |
| Package/Case | 0201 |
| Core Material | Non-Magnetic |
| Current Rating | 250mA |
| DC Current | 250mA |
| DC Resistance (DCR) | 700mR |
| Depth | 0.33mm |
| Height | 0.3mm |
| Height - Seated (Max) | 0.013inch |
| Inductance | 8.2nH |
| Length | 0.024inch |
| Max DC Current | 250mA |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 15000 |
| Packaging | Tape and Reel |
| Q Factor | 14 |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 3.6GHz |
| Series | LQP03TN_02 |
| Shielding | Unshielded |
| Technology | THIN FILM |
| Termination | SMD/SMT |
| Test Frequency | 500MHz |
| Tolerance | 5% |
| Width | 0.012inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQP03TN8N2J02D Datasheet
Download the complete datasheet for Murata LQP03TN8N2J02D to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

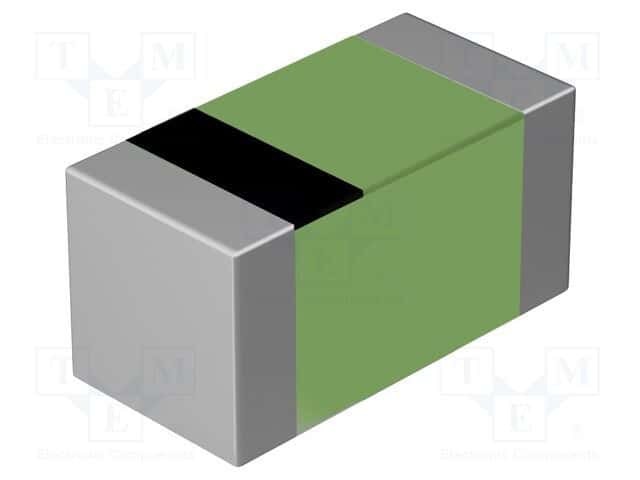

Product Images
