Surface mount fixed inductor featuring 1.8nH inductance and 0.05nH tolerance, operating at 500MHz with a 13 Q-factor. This unshielded, thin-film RF chip component offers a 280mA current rating and 0.2 Ohm DC resistance. Designed for surface mounting in a 0402 (1005 metric) case, it operates within a -40°C to 85°C temperature range and is RoHS compliant.
Package0402
Current Rating280mA
MountingSurface Mount
Inductance1.8nH
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Murata LQP15MN1N8W02D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Murata LQP15MN1N8W02D technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Core Material | Non-Magnetic, Ferrite |
| Current Rating | 280mA |
| DC Resistance (DCR) | 200mR |
| Depth | 0.6mm |
| Height | 0.35mm |
| Height - Seated (Max) | 0.018inch |
| Inductance | 1.8nH |
| Lead Free | Lead Free |
| Length | 1mm |
| Max DC Current | 280mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 13 |
| Radiation Hardening | No |
| Rated Current-Max | 280mA |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 6GHz |
| Series | LQP15M |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 500MHz |
| Weight | 2.3E-05oz |
| Width | 0.02inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQP15MN1N8W02D Datasheet
Download the complete datasheet for Murata LQP15MN1N8W02D to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

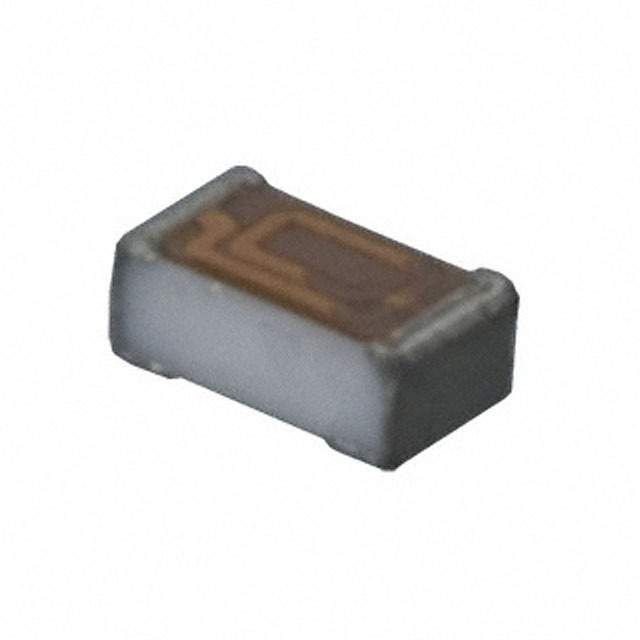

Product Images
