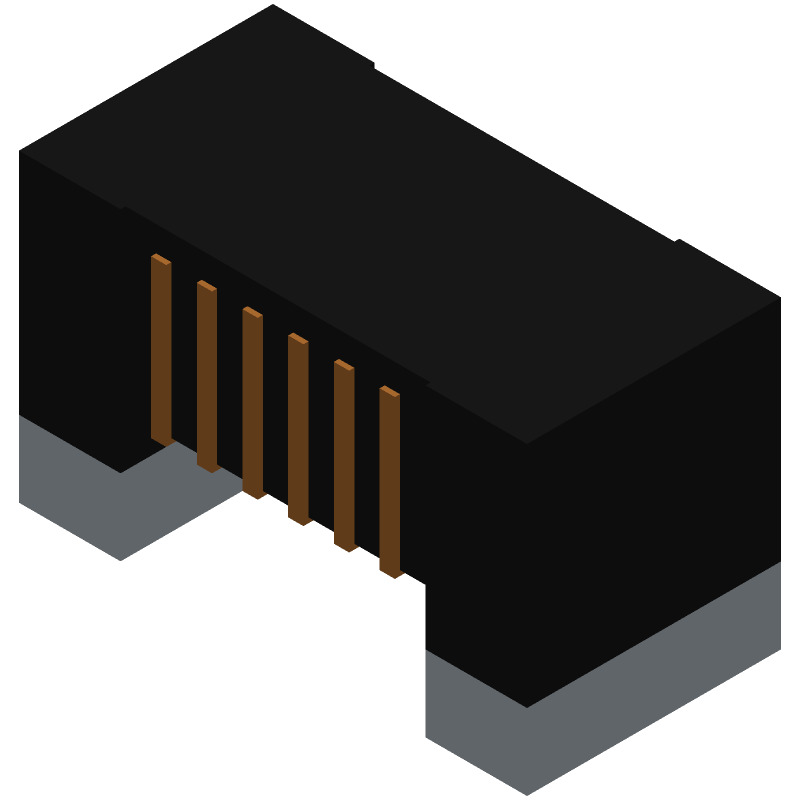

Surface mount fixed inductor featuring 5.8nH inductance with 2% tolerance, designed for RF applications. This unshielded wirewound component operates at 100MHz with a Q factor of 25 and a self-resonant frequency of 8GHz. It supports a maximum DC current of 700mA with a DC resistance of 120mR. Housed in a compact 0402 (1005 metric) case, it operates across a temperature range of -55°C to 125°C.
Package0402
Current135mA
MountingSurface Mount
Inductance5.8nH
Quick Jump:
Technical Specifications
Murata LQW15AN5N8B00D technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Core Material | Non-Magnetic, Air, Ferrite |
| Current | 135mA |
| DC Current | 700mA |
| DC Resistance (DCR) | 120mR |
| Depth | 0.7mm |
| Height | 0.5mm |
| Inductance | 5.8nH |
| Length | 1mm |
| Max DC Current | 700mA |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 25 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 8GHz |
| Series | LQW15A_00 |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 2% |
| Weight | 2.8E-05oz |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQW15AN5N8B00D Datasheet
Download the complete datasheet for Murata LQW15AN5N8B00D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
