Surface mount general purpose inductor with 8.2nH inductance and 2% tolerance. Features a non-magnetic ferrite core, 0402 (1005 metric) case size, and a maximum DC current of 540mA. Offers a low DC resistance of 140mR and a high self-resonant frequency of 5.5GHz. Operating temperature range is -55°C to 125°C, with RoHS compliance.
Package0402
MountingSurface Mount
Inductance8.2nH
Quick Jump:
Technical Specifications
Murata LQW15AN8N2G00D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Non-Magnetic, Ferrite
DC Current
540mA
DC Resistance (DCR)
140mR
Depth
0.7mm
Height
0.5mm
Inductance
8.2nH
Inductance Tolerance
2%
Lead Free
Lead Free
Length
1mm
Max DC Current
540mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
25
Radiation Hardening
No
Rated Current-Max
540mA
Reach SVHC Compliant
No
RMS Current (Irms)
540mA
RoHS Compliant
Yes
Self Resonant Frequency
5.5GHz
Series
LQW15A_00
Series Resistance
140mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
2%
Weight
2.8E-05oz
Width
0.5mm
Compliance
RoHS
Compliant
Datasheet
Murata LQW15AN8N2G00D Datasheet
Download the complete datasheet for Murata LQW15AN8N2G00D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

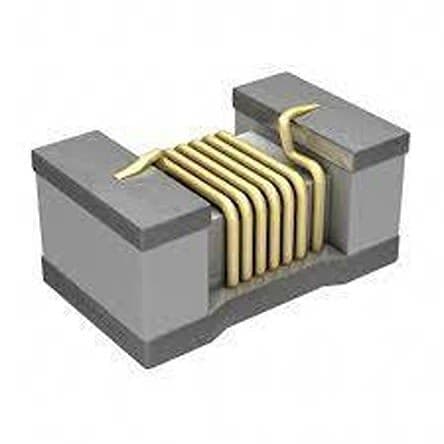

Product Images
