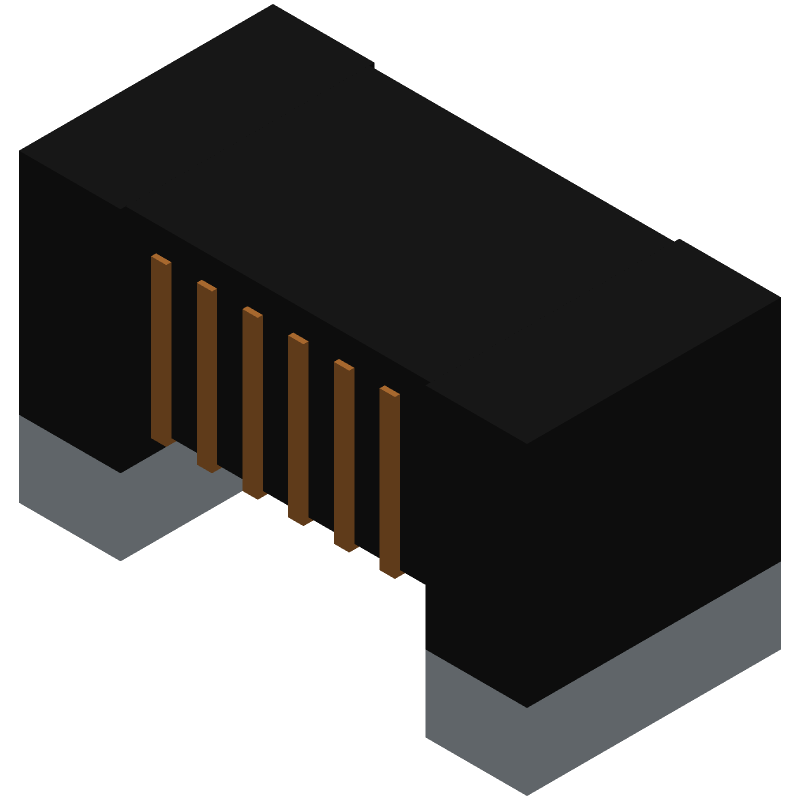

This is a general purpose inductor with a nominal inductance of 0.009uH and a DC resistance of 0.14 ohms. It has a maximum rated current of 0.54A and a self-resonance frequency of 5500kHz. The inductor is designed for use in RF applications and is not shielded. It has a quality factor of at least 25 at its nominal inductance. The inductor is available in a 0402 package type and is suitable for surface mount applications. It has a temperature range of -55 to 125 degrees Celsius.
Quick Jump:
Technical Specifications
Murata LQW15AN9N0J00D technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 2 |
| Min Operating Temperature | -55 |
| Number of Functions | 1 |
| Package Length | 1 |
| Tolerance | 5 |
| Package Width | 0.5 |
| Package Height | 0.85 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 0.009 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | NO |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 0.14 |
| Rated Current-Max | 0.54 |
| Test Frequency | 100 |
| Self Resonance Frequency | 5500 |
| Quality Factor-Min (at L-nom) | 25 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| HTS Code | 8504.50.80.00 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Murata LQW15AN9N0J00D Datasheet
Download the complete datasheet for Murata LQW15AN9N0J00D to view detailed technical specifications.
No datasheet is available for this part.
