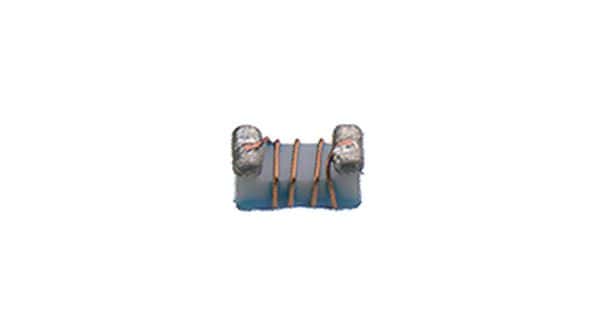

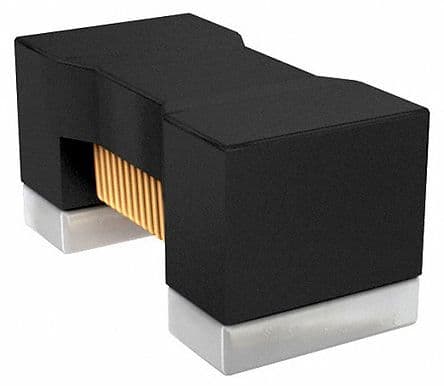

General purpose surface mount inductor with 27nH inductance and 2% tolerance. Features a 0603 case size (1.6mm x 0.8mm x 1mm) and an air-core, non-magnetic construction. Offers a DC current rating of 440mA, a DC resistance of 210mR, and a Q factor of 40 at 100MHz. Operates within a temperature range of -55°C to 125°C, with a self-resonant frequency of 3.7GHz. This RoHS compliant component is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata LQW18AN27NG00D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Core Material | Non-Magnetic |
| Current | 850mA |
| Current Rating | 440mA |
| DC Current | 440mA |
| DC Resistance (DCR) | 210mR |
| Depth | 1mm |
| Height | 0.8mm |
| Height - Seated (Max) | 0.039inch |
| Inductance | 27nH |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max DC Current | 440mA |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 40 |
| Radiation Hardening | No |
| Rated Current-Max | 440mA |
| RMS Current (Irms) | 440mA |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 3.7GHz |
| Series | LQW18A_00 |
| Series Resistance | 210mR |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 2% |
| Weight | 0.000106oz |
| Width | 0.031inch |
| RoHS | Compliant |
