General purpose surface mount inductor with 56nH inductance and 5% tolerance. Features a 0603 (1608 metric) case size, unshielded air core, and a maximum DC current rating of 360mA. Operates within a temperature range of -55°C to 125°C with a DC resistance of 350mR. Self-resonant frequency is 2.4GHz, and it is RoHS compliant.
Package0603
Current Rating360mA
MountingSurface Mount
Inductance56nH
Quick Jump:
Technical Specifications
Murata LQW18AN56NJ00D technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Core Material
Non-Magnetic
Current Rating
360mA
DC Current
360mA
DC Resistance (DCR)
350mR
Depth
1mm
Height
0.8mm
Height - Seated (Max)
0.039inch
Inductance
56nH
Lead Free
Lead Free
Length
1.6mm
Max DC Current
360mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
38
Radiation Hardening
No
Rated Current-Max
360mA
RMS Current (Irms)
360mA
RoHS Compliant
Yes
Self Resonant Frequency
2.4GHz
Series
LQW18A_00
Series Resistance
350mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
5%
Weight
0.000106oz
Width
0.031inch
Compliance
RoHS
Compliant
Datasheet
Murata LQW18AN56NJ00D Datasheet
Download the complete datasheet for Murata LQW18AN56NJ00D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

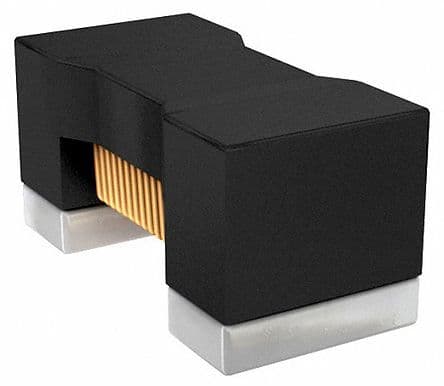

Product Images
