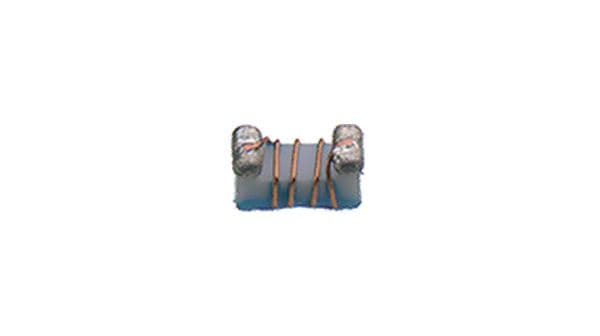

Surface mount wirewound RF chip inductor, 0.27µH inductance with 2% tolerance, designed for high-frequency applications with a Q factor of 30 at 100MHz. Features a non-magnetic core, 110mA current rating, and 3.4Ω DC resistance. Encased in a compact 0603 (1608 metric) package, this unshielded component operates from -55°C to 125°C and is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata LQW18ANR27G00D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Core Material | Non-Magnetic |
| Current Rating | 110mA |
| DC Current | 110mA |
| DC Resistance (DCR) | 3.4R |
| Depth | 1mm |
| Height | 0.8mm |
| Inductance | 270nH |
| Inductance Tolerance | 2% |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max DC Current | 110mA |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 30 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 960MHz |
| Series | LQW18A_00 |
| Series Resistance | 3.4R |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 2% |
| Weight | 0.000106oz |
| Width | 0.8mm |
| RoHS | Compliant |
