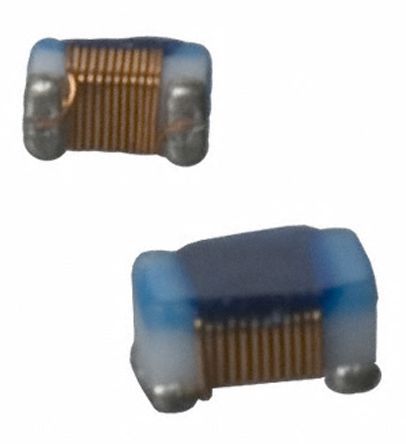

Surface mount fixed inductor featuring a 120nH inductance with a 5% tolerance, tested at 10MHz. This unshielded wirewound ferrite component offers a 1.1A current rating and a low 85mΩ DC resistance. Housed in a compact 0603 (1608 metric) case, it operates within a temperature range of -40°C to 85°C and boasts a self-resonant frequency of 1.2GHz. Packaged on tape and reel, this RoHS compliant component is ideal for RF applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata LQW18CNR12J00D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Core Material | Ferrite |
| Current Rating | 1.1A |
| DC Current | 1.1A |
| DC Resistance (DCR) | 85mR |
| Depth | 0.95mm |
| Height | 0.8mm |
| Height - Seated (Max) | 0.037inch |
| Inductance | 120nH |
| Inductance Tolerance | 5% |
| Length | 0.063inch |
| Max DC Current | 1.1A |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 1.2GHz |
| Series | LQW18CN_00 |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 10MHz |
| Tolerance | 5% |
| Weight | 0.000141oz |
| Width | 0.031inch |
| RoHS | Compliant |
