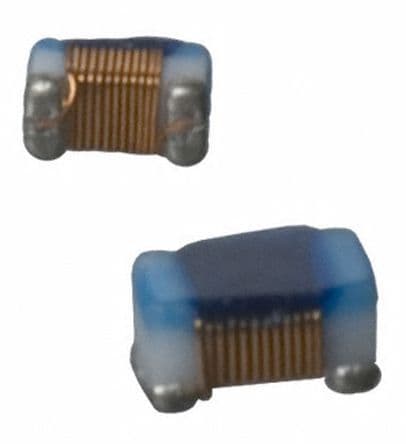

Surface mount general purpose inductor featuring 270nH inductance with a 5% tolerance. This ferrite-core chip inductor offers a 350mA current rating and a low DC resistance of 1 Ohm. Operating across a wide temperature range of -55°C to 125°C, it is housed in a compact 0805 (2015 metric) package. Key specifications include a self-resonant frequency of 730MHz and a Q factor of 48 at 100MHz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata LQW2BASR27J00L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Murata LQW2BASR27J00L technical specifications.
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2015 |
| Package/Case | 0805 |
| Core Material | Air |
| Current Rating | 350mA |
| DC Resistance (DCR) | 1R |
| Depth | 1.73mm |
| Height | 1.42mm |
| Height - Seated (Max) | 0.06inch |
| Inductance | 270nH |
| Inductance Tolerance | 5% |
| Length | 0.082inch |
| Max DC Current | 350mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 48 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 350mA |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 730MHz |
| Series | LQW2BA |
| Series Resistance | 1R |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 5% |
| Weight | 0.000494oz |
| Width | 0.06inch |
| RoHS | Compliant |
