Surface mount fixed inductor featuring 18nH inductance with a 5% tolerance, tested at 100MHz. This unshielded, wirewound chip inductor utilizes a non-magnetic, air core and offers a Q factor of 30. It supports a maximum DC current of 690mA with a DC resistance of 100mΩ. The component is housed in an 0805 (2012 metric) case, operates within a temperature range of -40°C to 85°C, and is RoHS compliant.
Package0805
Current Rating690mA
MountingSurface Mount
Inductance18nH
Quick Jump:
Technical Specifications
Murata LQW2BHN18NJ03L technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Core Material
Non-Magnetic, Air
Current Rating
690mA
DC Current
690mA
DC Resistance (DCR)
100mR
Depth
1.7mm
Height
1.7mm
Height - Seated (Max)
0.07inch
Inductance
18nH
Lead Free
Lead Free
Length
0.079inch
Max DC Current
690mA
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Q Factor
30
Radiation Hardening
No
RoHS Compliant
Yes
Self Resonant Frequency
2.6GHz
Series
LQW2BHN_03
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
5%
Weight
0.000317oz
Width
0.059inch
Compliance
RoHS
Compliant
Datasheet
Murata LQW2BHN18NJ03L Datasheet
Download the complete datasheet for Murata LQW2BHN18NJ03L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

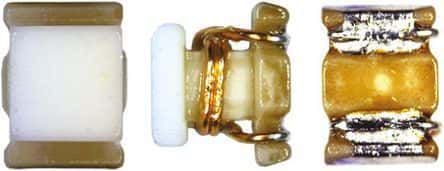

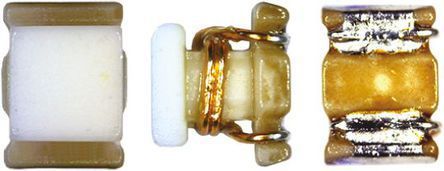

Product Images
