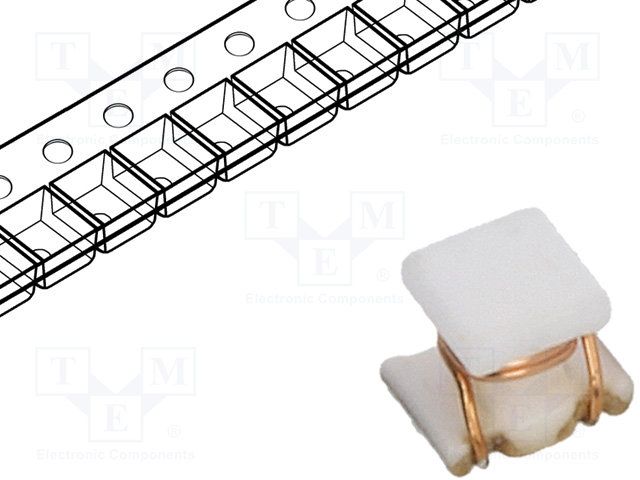

Surface mount wirewound RF chip inductor featuring 22nH inductance with a 5% tolerance, tested at 100MHz. This unshielded component offers a Q factor of 30 and a maximum DC current rating of 720mA, with a low DC resistance of 90mR. Housed in a compact 0805 (2012 metric) case, it operates within a temperature range of -40°C to 85°C and is RoHS compliant.
Package0805
Current Rating720mA
MountingSurface Mount
Inductance22nH
Quick Jump:
Technical Specifications
Murata LQW2BHN22NJ03L technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Core Material
Non-Magnetic, Air
Current Rating
720mA
DC Current
720mA
DC Resistance (DCR)
90mR
Depth
1.7mm
Height
1.7mm
Height - Seated (Max)
0.07inch
Inductance
22nH
Lead Free
Lead Free
Length
2.2mm
Max DC Current
720mA
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Q Factor
30
Radiation Hardening
No
RMS Current (Irms)
720mA
RoHS Compliant
Yes
Self Resonant Frequency
2.1GHz
Series
LQW2BHN_03
Series Resistance
90mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
5%
Weight
0.000317oz
Width
0.059inch
Compliance
RoHS
Compliant
Datasheet
Murata LQW2BHN22NJ03L Datasheet
Download the complete datasheet for Murata LQW2BHN22NJ03L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
