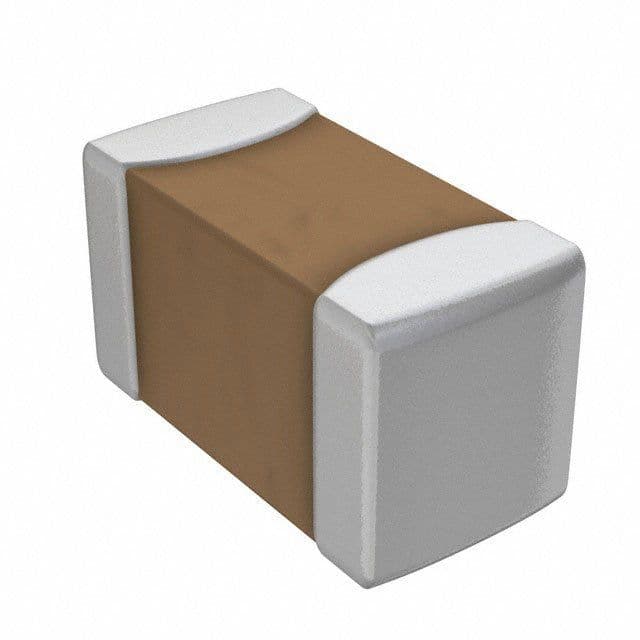

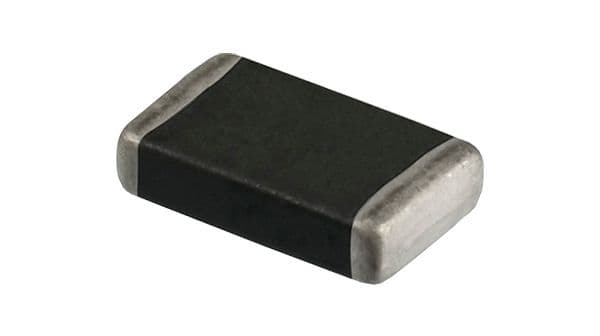

The LXES15AAA1-100 is a bidirectional Zener diode from Murata with a clamping voltage of 40V and a capacitance of 0.05pF. It is available in a 0402 package and is designed for surface mount applications. The diode operates within a temperature range of -40°C to 85°C and is compliant with RoHS regulations. It is a single-channel device with a working voltage of 15V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata LXES15AAA1-100 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 0.05pF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Clamping Voltage | 40V |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Operating Supply Voltage | 15V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Working Voltage | 15V |
| RoHS | Compliant |
Download the complete datasheet for Murata LXES15AAA1-100 to view detailed technical specifications.
