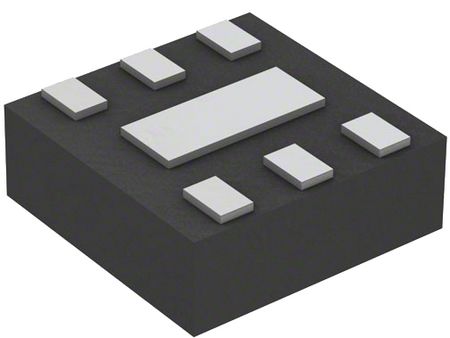

Unidirectional transient voltage suppressor diode with a minimum breakdown voltage of 6V and a reverse standoff voltage of 5.5V. Features a low capacitance of 0.55pF, suitable for surface mount applications with dimensions of 1.6mm (length) x 1.6mm (depth) x 0.5mm (height). Operates within a temperature range of -40°C to 85°C and offers power line protection. This silicon component is packaged in a ROHS COMPLIANT PACKAGE-6 and supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata LXES1TBAA2-013 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 0.55pF |
| Depth | 1.6mm |
| Direction | Unidirectional |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Min Breakdown Voltage | 6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 2 |
| Number of Channels | 2 |
| Number of Unidirectional Channels | 2 |
| Operating Supply Voltage | 5.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Bidirectional |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 5.5V |
| RoHS Compliant | No |
| Series | LXES |
| Termination | SMD/SMT |
| Voltage Rating | 6V |
| DC Rated Voltage | 6V |
| Working Voltage | 5.5V |
| RoHS | Not CompliantNo |
Download the complete datasheet for Murata LXES1TBAA2-013 to view detailed technical specifications.
