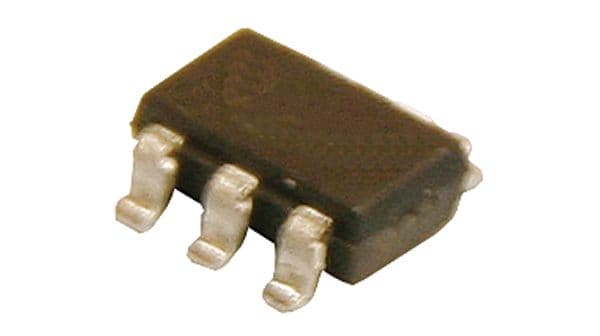

Unidirectional Transient Voltage Suppressor Diode, featuring a 5.5V reverse standoff voltage and 6V minimum breakdown voltage. This silicon component offers 4 unidirectional channels with a low capacitance of 0.55pF. Designed for surface mount applications, it is housed in a SOT-23-6 package and operates within a temperature range of -40°C to 85°C. The device is lead-free and RoHS compliant, providing power line protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata LXES2SBAA4-016 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 0.55pF |
| Package/Case | SOT-23-6 |
| Depth | 1.6mm |
| Direction | Unidirectional |
| Height | 1.15mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Min Breakdown Voltage | 6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 4 |
| Number of Channels | 4 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 5.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Bidirectional |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 5.5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Voltage Rating | 6V |
| DC Rated Voltage | 6V |
| Working Voltage | 5.5V |
| RoHS | Compliant |
