Board mount DC-DC converter module, 1W output power, featuring dual 15V and -15V outputs with 33mA current capability per output. This hybrid power supply operates from a 4.5V to 5.5V DC input, delivering 88% efficiency. It offers 3kV isolation voltage and is housed in a SIP-7/5 package for through-hole mounting. Operating temperature range is -40°C to 85°C.
PackageDIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Murata MEV1D0515SC technical specifications.
General
| Package/Case | DIP |
| Current - Output 1 | 33mA |
| Current - Output 2 | -33mA |
| Depth | 6.15mm |
| Efficiency | 88% |
| Height | 0.24inch |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Length | 0.78inch |
| Max Input Voltage (DC) | 5.5V |
| Min Input Voltage (DC) | 4.5V |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 33mA |
| Max Output Power | 1W |
| Max Power Dissipation | 1W |
| Mount | Through Hole |
| Nominal Input Voltage | 5V |
| Nominal Output Voltage | -15V |
| Number of Outputs | 2 |
| Operating Supply Voltage | 5V |
| Output Current | 33mA |
| Output Power | 1W |
| Output Voltage | 15V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MEV1 |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Weight | 2.5g |
| Width | 0.4inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata MEV1D0515SC Datasheet
Download the complete datasheet for Murata MEV1D0515SC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

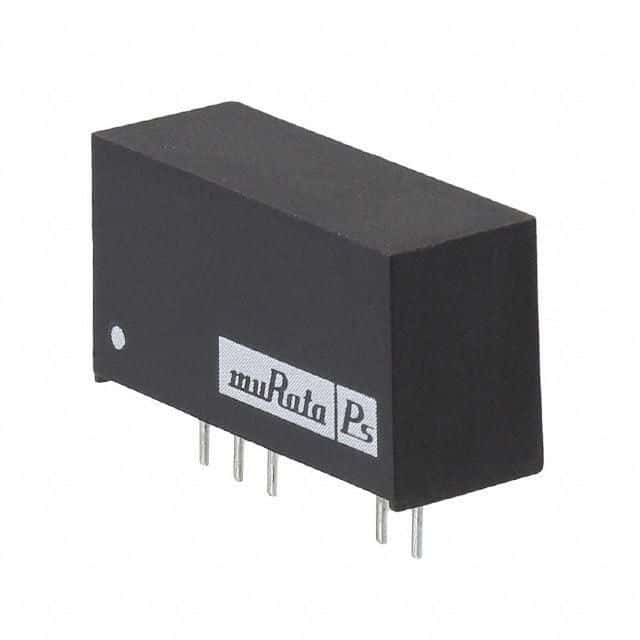

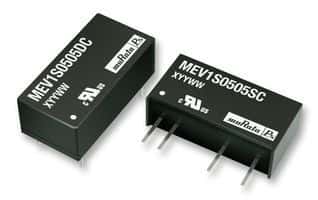

Product Images
