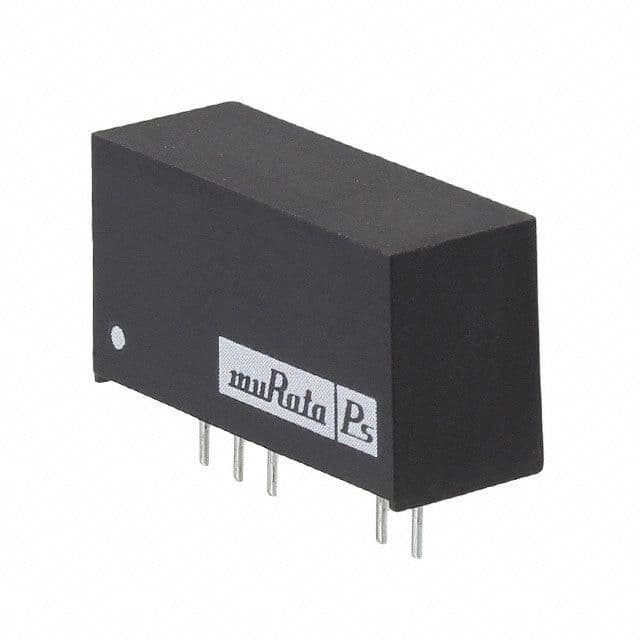

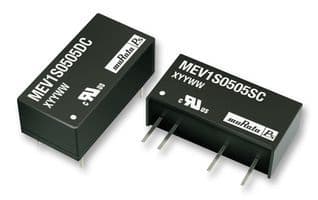

1W DC-DC converter module, SIP package, featuring dual 15V and -15V outputs, each rated for 33mA. This board-mount power supply offers 3kV isolation voltage and operates within a 13.5V to 16.5V DC input range, with a nominal input of 15V. Achieving 90.5% efficiency, it supports through-hole mounting and a wide operating temperature range of -40°C to 85°C. The compact design includes dimensions of 19.65mm width, 0.78inch length, and 6.15mm depth.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata MEV1D1515SC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SIP |
| Current - Output 1 | 33mA |
| Current - Output 2 | -33mA |
| Depth | 6.15mm |
| Efficiency | 90.5% |
| Height | 10.15mm |
| Isolation Voltage | 3kV |
| Length | 0.78inch |
| Max Input Voltage (DC) | 16.5V |
| Min Input Voltage (DC) | 13.5V |
| Max Input Voltage | 16.5V |
| Min Input Voltage | 13.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 33mA |
| Max Output Power | 1W |
| Max Power Dissipation | 1W |
| Mount | Through Hole |
| Nominal Input Voltage | 15V |
| Nominal Output Voltage | -15V |
| Number of Outputs | 2 |
| Operating Supply Voltage | 15V |
| Output Current | 33mA |
| Output Power | 1W |
| Output Voltage | 15V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MEV1 |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Weight | 2.5g |
| Width | 19.65mm |
| RoHS | Compliant |
