1W DC-DC regulated power supply module, SIP package, featuring a single 9V output at 111mA. This hybrid converter operates with 86% efficiency, accepting a 10.8V to 13.2V DC input range. Provides 3kV isolation voltage and is RoHS compliant. Dimensions are 19.65mm depth, 10.15mm height, 6.15mm width, and 0.77 inches length.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Murata MEV1S1209SC technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 111mA |
| Depth | 19.65mm |
| Efficiency | 86% |
| Height | 10.15mm |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Length | 0.77inch |
| Max Input Voltage (DC) | 13.2V |
| Min Input Voltage (DC) | 10.8V |
| Max Input Voltage | 13.2V |
| Min Input Voltage | 10.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 111mA |
| Max Output Power | 1W |
| Max Power Dissipation | 1W |
| Mount | Through Hole |
| Nominal Input Voltage | 12V |
| Nominal Output Voltage | 9V |
| Number of Outputs | 1 |
| Output Current | 111mA |
| Output Power | 1W |
| Output Voltage | 9V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MEV1 |
| Voltage - Output 1 | 9V |
| Width | 6.15mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata MEV1S1209SC Datasheet
Download the complete datasheet for Murata MEV1S1209SC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

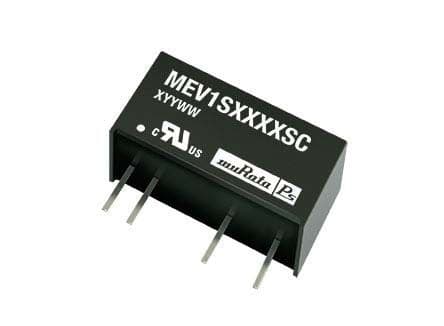

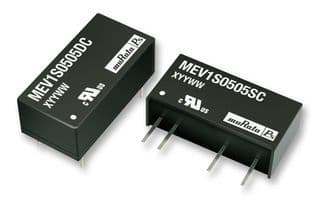

Product Images
