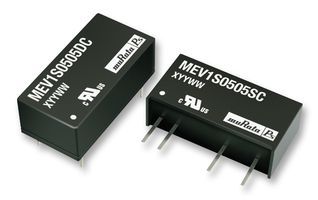

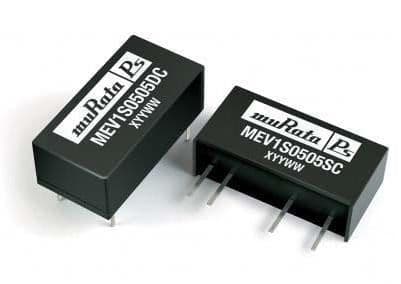

1W DC-DC converter module with a single 5V output at 200mA. Features a 15V nominal input voltage, operating between 13.5V and 16.5V DC. Offers 3kV isolation voltage and 83.5% efficiency. Packaged in a DIP form factor for through-hole mounting, with dimensions of 19.7mm (depth), 7mm (height), 10mm (width), and 0.77 inches (length). Operates across a -40°C to 85°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata MEV1S1505DC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Murata MEV1S1505DC technical specifications.
| Package/Case | DIP |
| Current - Output 1 | 200mA |
| Depth | 19.7mm |
| Efficiency | 83.5% |
| Height | 7mm |
| Isolation Voltage | 3kV |
| Length | 0.77inch |
| Max Input Voltage (DC) | 16.5V |
| Min Input Voltage (DC) | 13.5V |
| Max Input Voltage | 16.5V |
| Min Input Voltage | 13.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Output Power | 1W |
| Max Power Dissipation | 1W |
| Mount | Through Hole |
| Nominal Input Voltage | 15V |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 15V |
| Output Current | 200mA |
| Output Power | 1W |
| Output Voltage | 5V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MEV1 |
| Voltage - Output 1 | 5V |
| Width | 10mm |
| RoHS | Compliant |
