Board mount DC-DC converter, 3W output power, 12V nominal output voltage, 250mA output current. Features 12V nominal input voltage, 88% efficiency, and 3kV isolation. Operates across a -40°C to 85°C temperature range. Packaged in a SIP for through-hole mounting.
PackageSIP
MountingThrough Hole
Power3W
Quick Jump:
Technical Specifications
Murata MEV3S1212SC technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 250mA |
| Depth | 19.65mm |
| Efficiency | 88% |
| Height | 0.4inch |
| Isolation | Isolated |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Length | 19.65mm |
| Max Input Voltage (DC) | 13.2V |
| Min Input Voltage (DC) | 10.8V |
| Max Input Voltage | 13.2V |
| Min Input Voltage | 10.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Output Power | 3W |
| Max Power Dissipation | 3W |
| Mount | Through Hole |
| Nominal Input Voltage | 12V |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Output Current | 250mA |
| Output Power | 3W |
| Output Voltage | 12V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MEV3 |
| Voltage - Output 1 | 12V |
| Width | 0.3inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata MEV3S1212SC Datasheet
Download the complete datasheet for Murata MEV3S1212SC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

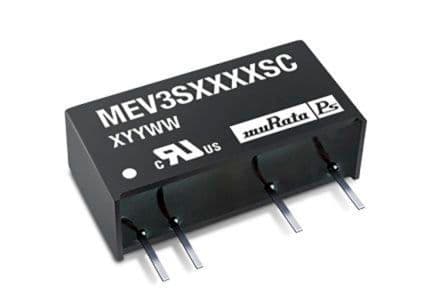

Product Images
