Surface mount NTC thermistor with 220kΩ resistance and 5% tolerance. Features a 0603 (1608 metric) case size, operating temperature range of -40°C to 125°C, and a 5V voltage rating. Maximum power dissipation is 100mW, with a current rating of 60µA and a maximum current rating of 21µA. Lead-free and RoHS compliant, packaged in tape and reel.
Package0603
Resistance220kR
Voltage Rating5V
Current Rating60uA
Quick Jump:
Technical Specifications
Murata NCP18WM224J03RB technical specifications.
General
Accuracy
3%
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Current Rating
60uA
Depth
0.8mm
Height
0.8mm
Lead Free
Lead Free
Length
1.6mm
Max Current Rating
21uA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
100mW
Mount
Surface Mount
Package Quantity
4000
Packaging
Tape and Reel
Resistance
220kR
Resistance Tolerance
5%
RoHS Compliant
Yes
Series
NCP18
Termination
SMD/SMT
Tolerance
5%
Voltage Rating
5V
Width
800um
Compliance
RoHS
Compliant
Datasheet
Murata NCP18WM224J03RB Datasheet
Download the complete datasheet for Murata NCP18WM224J03RB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

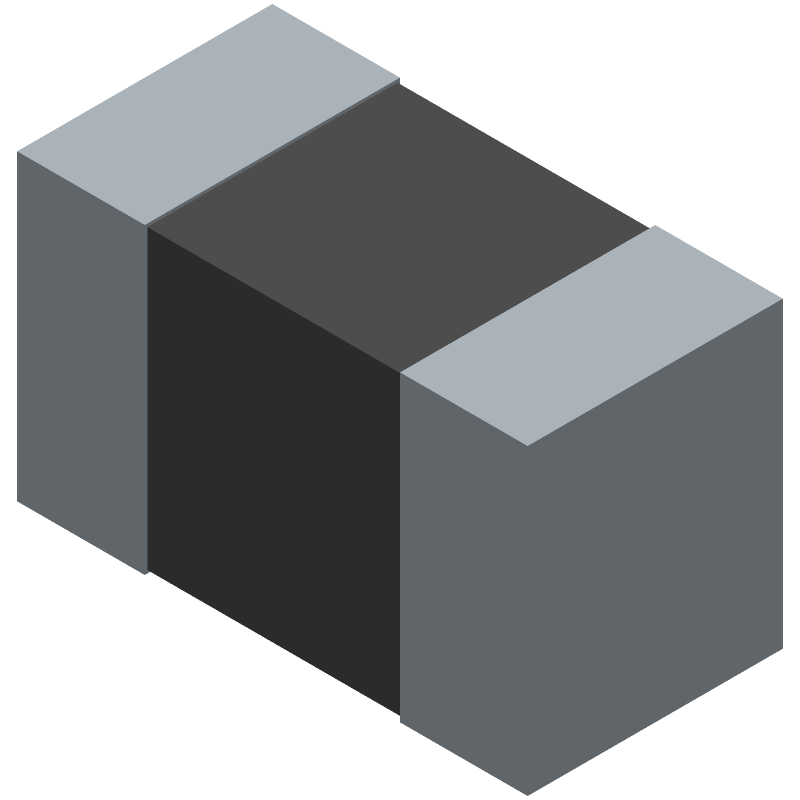

Product Images
