The NCP18XH103F0SRB is a varistor from Murata with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It is available in a 0603 package, suitable for surface mount applications. The varistor is RoHS compliant and has a resistance of 10kR with a tolerance of 1%. It is packaged in tape and reel with 4000 units per package.
Package0603
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata NCP18XH103F0SRB technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 1% |
Compliance
| RoHS | Compliant |
Datasheet
Murata NCP18XH103F0SRB Datasheet
Download the complete datasheet for Murata NCP18XH103F0SRB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

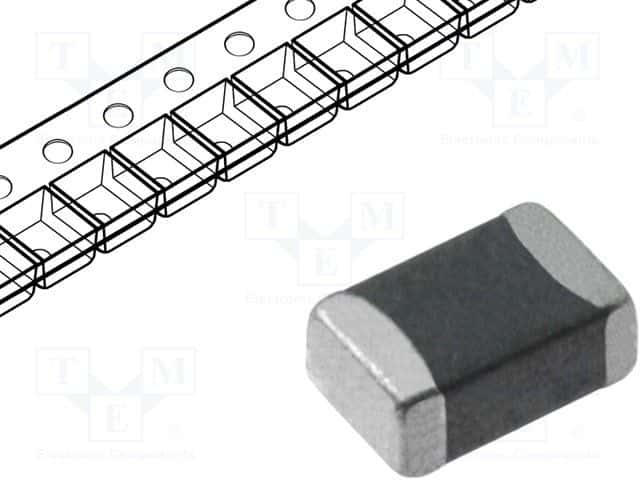

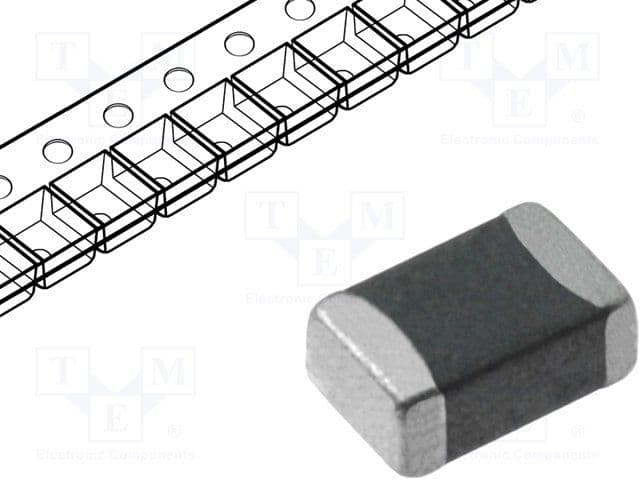

Product Images
