Surface mount NTC thermistor, 470 Ohm resistance with 5% tolerance. Features a 0603 (1608 metric) case code, 5V voltage rating, and 100mW max power dissipation. Operates within a -40°C to 125°C temperature range, with a 1.4mA current rating. Lead-free and RoHS compliant, supplied in tape and reel packaging.
Package0603
Resistance470R
Voltage Rating5V
Current Rating1.4mA
Quick Jump:
Technical Specifications
Murata NCP18XQ471J03RB technical specifications.
General
| Accuracy | 2% |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Current Rating | 1.4mA |
| Depth | 0.8mm |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Current Rating | 609uA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Resistance | 470R |
| Resistance Tolerance | 5% |
| RoHS Compliant | Yes |
| Series | NCP18 |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 5V |
| Width | 800um |
Compliance
| RoHS | Compliant |
Datasheet
Murata NCP18XQ471J03RB Datasheet
Download the complete datasheet for Murata NCP18XQ471J03RB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

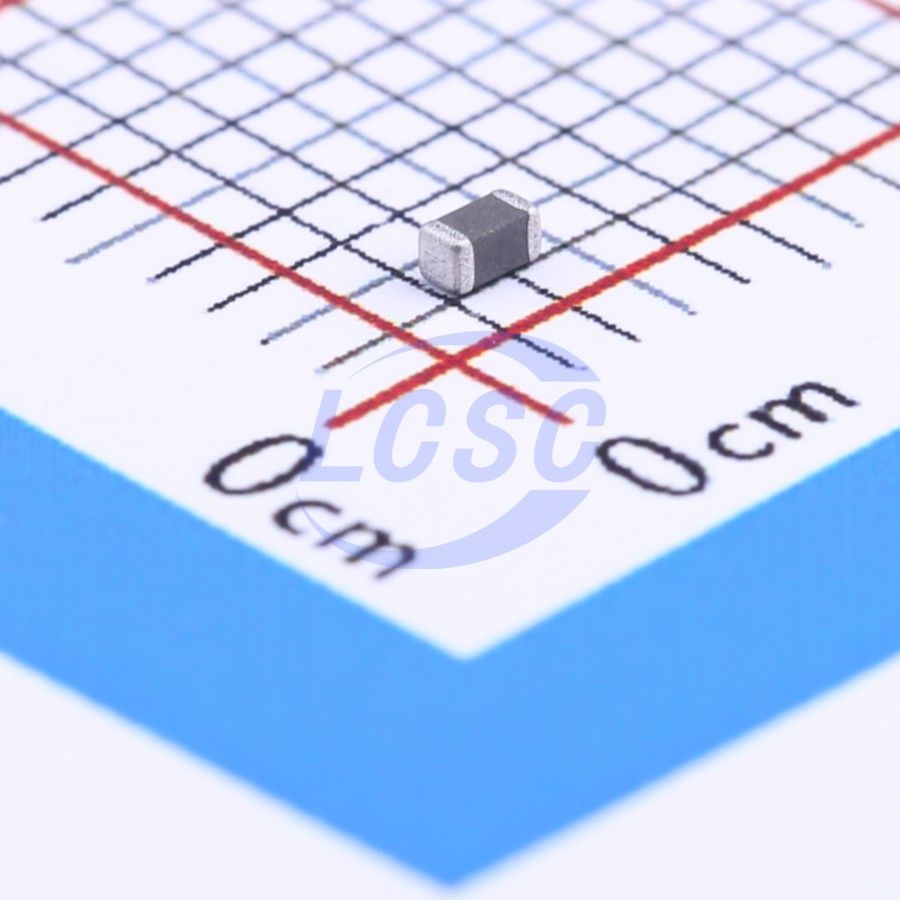

Product Images
