Board mount DC-DC converter with 6W maximum output power. Features dual 12V and -12V outputs, each capable of 250mA. Operates with an input voltage range of 18V to 36V DC, nominal 24V. Offers 1.5kV isolation and 87% efficiency. Packaged in a DIP form factor for through-hole mounting, with dimensions of 32mm x 20mm x 10mm. RoHS compliant.
PackageDIP
MountingThrough Hole
Power6W
Quick Jump:
Technical Specifications
Murata NDS6D2412C technical specifications.
General
| Package/Case | DIP |
| Current - Output 1 | 250mA |
| Current - Output 2 | 250mA |
| Depth | 20mm |
| Efficiency | 87% |
| Height | 10mm |
| Isolation | Isolated |
| Isolation Voltage | 1.5kV |
| Length | 32mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Output Power | 6W |
| Max Power Dissipation | 6W |
| Mount | Through Hole |
| Nominal Input Voltage | 24V |
| Nominal Output Voltage | -12V |
| Number of Outputs | 2 |
| Output Current | 250mA |
| Output Power | 6W |
| Output Voltage | 12V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | NDS6 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Width | 20mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata NDS6D2412C Datasheet
Download the complete datasheet for Murata NDS6D2412C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

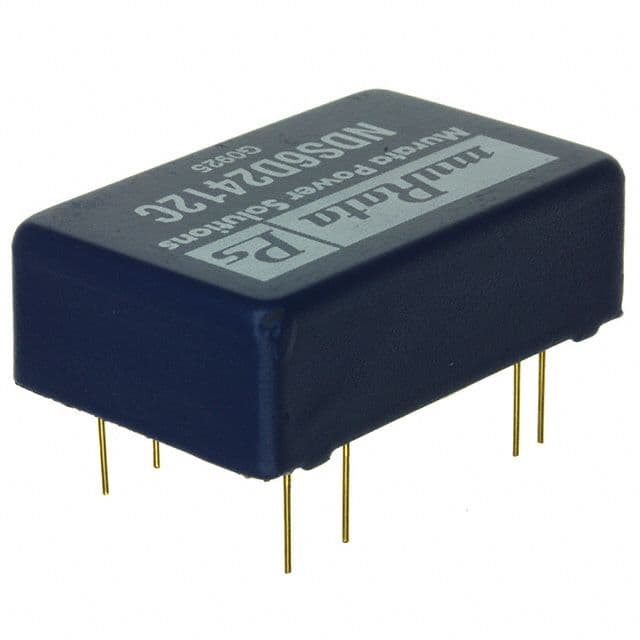

Product Images
