Board mount EMI filter featuring an LC circuit design for effective noise suppression. This flat-style, surface-mount component offers a 6A current rating and a 25VDC voltage rating. Constructed with a ceramic dielectric, it operates across a temperature range of -40°C to 85°C and is housed in a 1206 (3216 metric) case. The filter is RoHS compliant and supplied on tape and reel.
Package1206
Current6A
Capacitance470pF
Voltage Rating25V
Quick Jump:
Technical Specifications
Murata NFE31PT471F1E9L technical specifications.
General
| Capacitance | 470pF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Current | 6A |
| Current Rating | 6A |

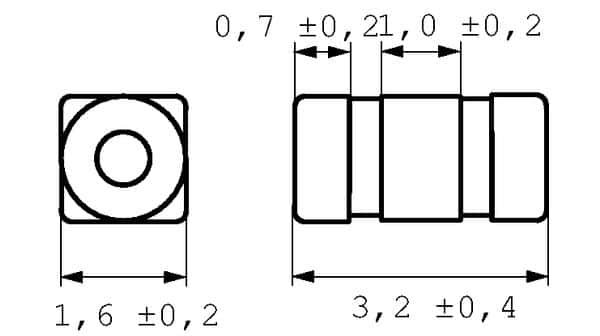

| Depth | 1.6mm |
| Dielectric Material | Ceramic |
| ESD Protection | No |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 25V |
| Mount | Surface Mount, PCB |
| Number of Channels | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EMIFIL®, NFE31P |
| Termination | Flat |
| Tolerance | 50% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata NFE31PT471F1E9L Datasheet
Download the complete datasheet for Murata NFE31PT471F1E9L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

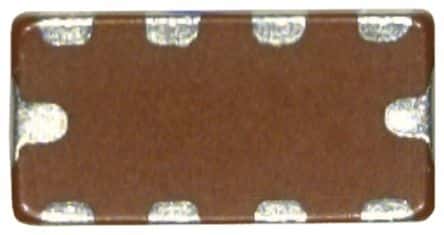

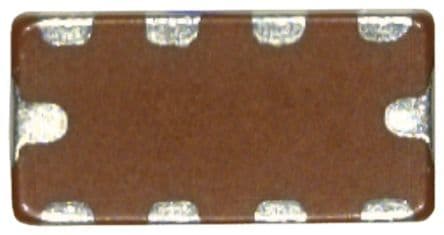

Product Images
