Board mount EMI/RFI filter featuring an LC-circuit design for effective noise suppression. This flat-style, surface-mount component offers a 2A current rating and 50VDC voltage rating. Key specifications include 4.7nF capacitance and a compact 6.8mm x 1.6mm x 1.6mm footprint. Operating temperature range is -25°C to 85°C, with lead-free and RoHS compliance.
Package2606
Current2A
Capacitance4.7nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Murata NFE61PT472C1H9L technical specifications.
General
| Capacitance | 4.7nF |
| Case Code (Imperial) | 2706 |
| Case Code (Metric) | 6816 |
| Package/Case | 2606 |
| Current | 2A |
| Current Rating | 2A |
| DC Resistance (DCR) | 1GR |
| Depth | 1.6mm |
| Dielectric Material | Ceramic |
| ESD Protection | No |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 6.8mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 50V |
| Mount | Surface Mount, PCB, Through Hole |
| Number of Channels | 1 |
| Output Current | 2A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EMIFIL®, NFE61P |
| Termination | Flat |
| Tolerance | 80% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata NFE61PT472C1H9L Datasheet
Download the complete datasheet for Murata NFE61PT472C1H9L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

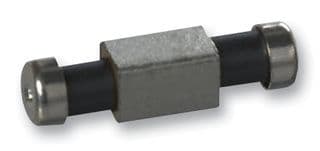

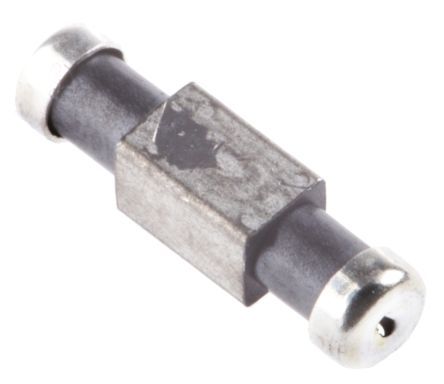

Product Images
