EMI filter, LC-circuit, surface mount, 0805 package. Features 16V DC voltage rating, 150mA current rating, and 125°C max operating temperature. Includes 76pF capacitance and 185nH inductance. Flat termination, lead-free, and RoHS compliant.
Package0805
Current150mA
Capacitance76pF
Voltage Rating16V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Murata NFL21SP706X1C3D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Murata NFL21SP706X1C3D technical specifications.
General
| Capacitance | 76pF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Circuit Type | Filter |
| Current | 150mA |
| Current Rating | 150mA |
| Depth | 1.25mm |
| ESD Protection | No |
| Height | 0.85mm |
| Inductance | 185nH |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Current Rating | 150mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 16V |
| Mount | Surface Mount, PCB |
| Number of Channels | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | EMIFIL®, NFL21SP |
| Termination | Flat |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata NFL21SP706X1C3D Datasheet
Download the complete datasheet for Murata NFL21SP706X1C3D to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

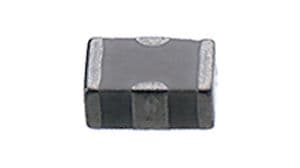

Product Images
