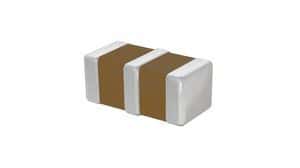

Feed-through ceramic capacitor with 1µF capacitance and 6.3VDC voltage rating. Features a 20% tolerance, 4A current rating, and 10mΩ DC resistance. Surface mountable in a 0603 (1608 metric) case with flat termination. Operates from -55°C to 105°C and is RoHS compliant.
Package0603
Voltage6.3V
Current4A
Capacitance1uF
Quick Jump:
Technical Specifications
Murata NFM18PC105R0J3D technical specifications.
General
Capacitance
1uF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Current
4A
Current Rating
4A
DC Resistance (DCR)
10mR
Depth
0.8mm
Height
0.8mm
Lead Free
Lead Free
Length
1.6mm
Manufacturer Series
NFM18PC
Max Current Rating
2A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
6.3V
Mount
Surface Mount
Number of Functions
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EMIFIL®, NFM18PC
Termination
Flat
Thickness
800um
Tolerance
20%
Voltage
6.3V
Voltage Rating
6.3V
Voltage Rating (AC)
6.3V
DC Rated Voltage
6.3V
Width
0.031inch
Compliance
RoHS
Compliant
Datasheet
Murata NFM18PC105R0J3D Datasheet
Download the complete datasheet for Murata NFM18PC105R0J3D to view detailed technical specifications.
