Surface mount feed-through ceramic capacitor offering 470nF capacitance with a 20% tolerance. Features a 2A current rating and a 6.3V DC voltage rating, operating from -55°C to 125°C. Housed in a compact 0603 (1608 metric) case with a low 30mR DC resistance. Designed for PCB mounting, this lead-free component is supplied on tape and reel.
Package0603
Voltage100V
Current2A
Capacitance470nF
Quick Jump:
Technical Specifications
Murata NFM18PS474R0J3D technical specifications.
General
| Capacitance | 470nF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Current | 2A |
| Current Rating | 2A |
| DC Resistance (DCR) | 30mR |
| Depth | 0.8mm |
| Height | 0.6mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 6.3V |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EMIFIL®, NFM18PS |
| Termination | Flat |
| Thickness | 600um |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata NFM18PS474R0J3D Datasheet
Download the complete datasheet for Murata NFM18PS474R0J3D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

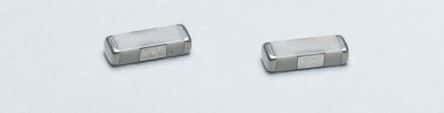

Product Images
