Surface mount feed-through ceramic capacitor with 1nF capacitance and 50V DC voltage rating. Features 20% tolerance, 1A maximum current rating, and operates from -55°C to 125°C. Packaged in an 0805 (2012 metric) case with flat termination, this RoHS compliant component is suitable for PCB mounting.
Package0805
Voltage50V
Current1A
Capacitance1nF
Quick Jump:
Technical Specifications
Murata NFM21CC102R1H3D technical specifications.
General
Capacitance
1nF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Current
1A
Current Rating
300mA
DC Resistance (DCR)
300mR
Depth
1.25mm
Height
0.85mm
Lead Free
Lead Free
Length
2mm
Max Current Rating
1A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
50V
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EMIFIL®, NFM21C
Termination
Flat
Thickness
850um
Tolerance
20%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Weight
0.000194oz
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Murata NFM21CC102R1H3D Datasheet
Download the complete datasheet for Murata NFM21CC102R1H3D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

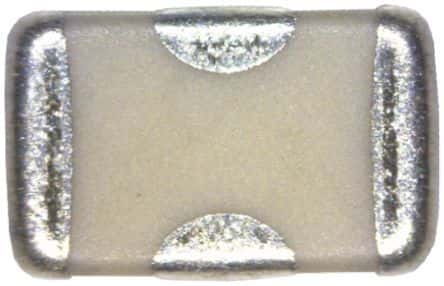

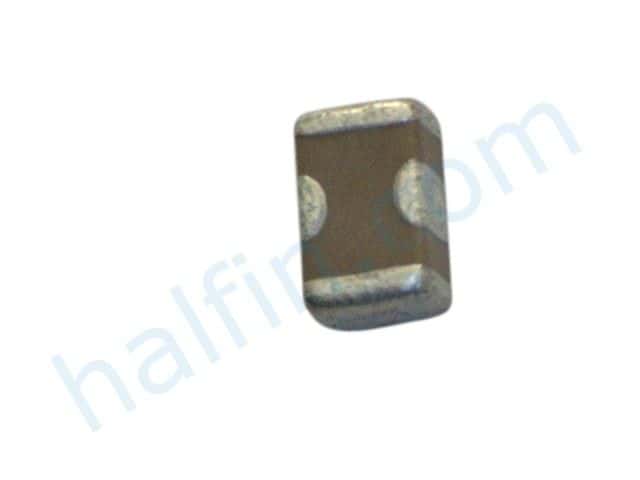

Product Images
