Feed-through ceramic capacitor, 220pF capacitance, 50V DC voltage rating, and 20% tolerance. Features a 700mA current rating and operates across a -55°C to 125°C temperature range. Surface mountable in an 0805 (2012 metric) case code with flat termination. RoHS compliant and lead-free.
Package0805
Voltage50V
Current700mA
Capacitance220pF
Quick Jump:
Technical Specifications
Murata NFM21CC221R1H3D technical specifications.
General
Capacitance
220pF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Current
700mA
Current Rating
700mA
DC Resistance (DCR)
300mR
Depth
1.25mm
Height
0.85mm
Lead Free
Lead Free
Length
2mm
Max Current Rating
700mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
50V
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EMIFIL®, NFM21C
Termination
Flat
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Weight
0.000194oz
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Murata NFM21CC221R1H3D Datasheet
Download the complete datasheet for Murata NFM21CC221R1H3D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

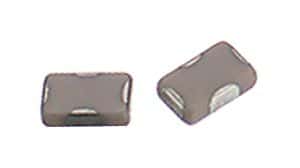

Product Images
