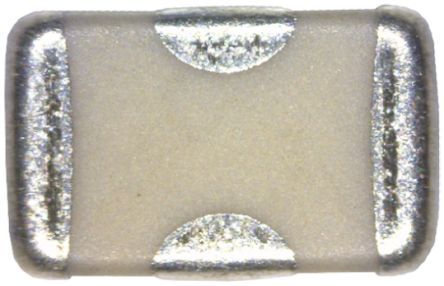

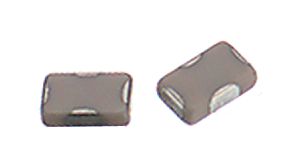

Surface mount feed-through ceramic capacitor with 2.2nF capacitance and 50V DC voltage rating. Features a 20% tolerance, 1A maximum current rating, and operates from -55°C to 125°C. Housed in a 0805 (2012 metric) case with flat termination, this RoHS compliant component is designed for PCB mounting.
Package0805
Voltage50V
Current1A
Capacitance2.2nF
Quick Jump:
Technical Specifications
Murata NFM21CC222R1H3D technical specifications.
General
Capacitance
2.2nF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Current
1A
Current Rating
300mA
DC Resistance (DCR)
300mR
Depth
1.25mm
Height
0.85mm
Lead Free
Lead Free
Length
2mm
Max Current Rating
1A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
50V
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EMIFIL®, NFM21C
Termination
Flat
Thickness
850um
Tolerance
20%
Voltage
50V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
1.25mm
Compliance
RoHS
Compliant
