22nF, 50V, 2A surface mount ceramic feed-through capacitor. Features a 0805 (2012 metric) case size with a 20% tolerance. Operating temperature range from -55°C to 125°C. AEC-Q200 qualified and RoHS compliant.
Package0805
Current2A
Capacitance22nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Murata NFM21HC223R1H3D technical specifications.
General
| Capacitance | 22nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Current | 2A |
| Current Rating | 2A |
| Depth | 1.25mm |
| Height | 0.037inch |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 50V |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EMIFIL®, NFM21 |
| Termination | Flat |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata NFM21HC223R1H3D Datasheet
Download the complete datasheet for Murata NFM21HC223R1H3D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

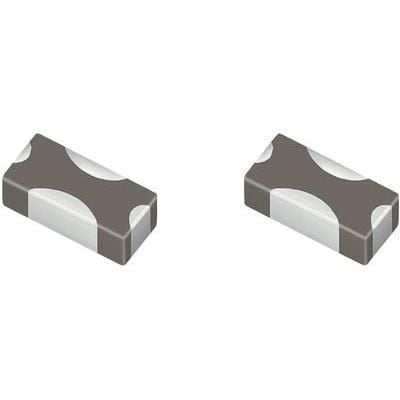

Product Images
