Feed-through ceramic capacitor with 100nF capacitance and 25V DC voltage rating. Features a 20% tolerance and a 2A current rating. Surface mountable in an 0805 case code, this component operates from -55°C to 125°C. It is RoHS compliant and lead-free.
Package0805
Voltage25V
Current2A
Capacitance100nF
Quick Jump:
Technical Specifications
Murata NFM21PC104R1E3D technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Current | 2A |
| Current Rating | 2A |
| DC Resistance (DCR) | 30mR |
| Depth | 1.25mm |
| Height | 0.85mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Manufacturer Series | NFM21P |
| Max Current Rating | 2A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 25V |
| Mount | Surface Mount, PCB |
| Number of Functions | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EMIFIL®, NFM21PC |
| Termination | Flat |
| Thickness | 850um |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| Voltage Rating (AC) | 25V |
| DC Rated Voltage | 25V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata NFM21PC104R1E3D Datasheet
Download the complete datasheet for Murata NFM21PC104R1E3D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

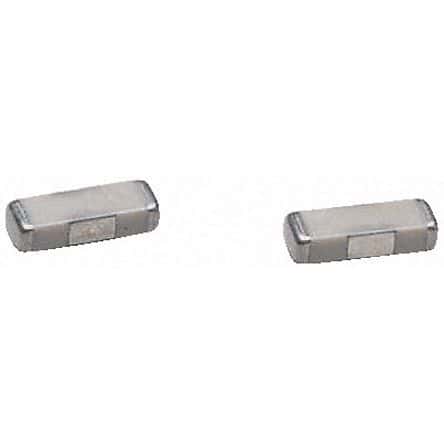

Product Images
