Feed-through ceramic capacitor with 470nF capacitance and 16V DC voltage rating. Features a 2A current rating, 20% tolerance, and operates from -55°C to 125°C. Surface mountable in an 0805 case code with flat termination and a maximum DC resistance of 30mΩ. RoHS compliant and designed for PCB applications.
Package0805
Voltage16V
Current2A
Capacitance470nF
Quick Jump:
Technical Specifications
Murata NFM21PC474R1C3D technical specifications.
General
Capacitance
470nF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Current
2A
Current Rating
2A
DC Resistance (DCR)
30mR
Depth
1.25mm
Height
0.85mm
Lead Free
Lead Free
Length
2mm
Max Current Rating
2A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
16V
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EMIFIL®, NFM21PC
Termination
Flat
Thickness
850um
Tolerance
20%
Voltage
16V
Voltage Rating
16V
Voltage Rating (AC)
16V
DC Rated Voltage
16V
Weight
0.000194oz
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Murata NFM21PC474R1C3D Datasheet
Download the complete datasheet for Murata NFM21PC474R1C3D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

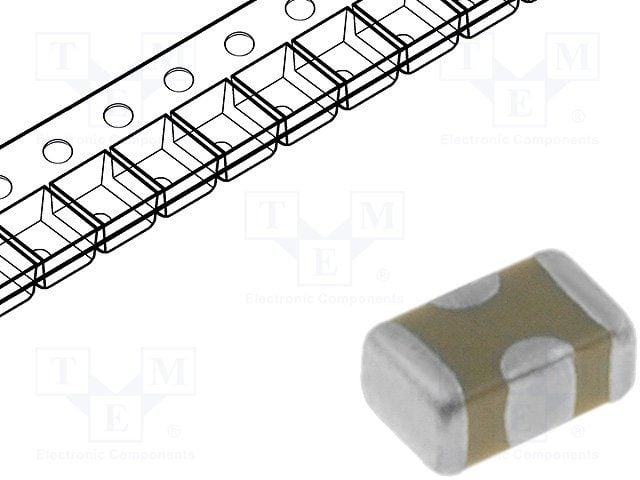

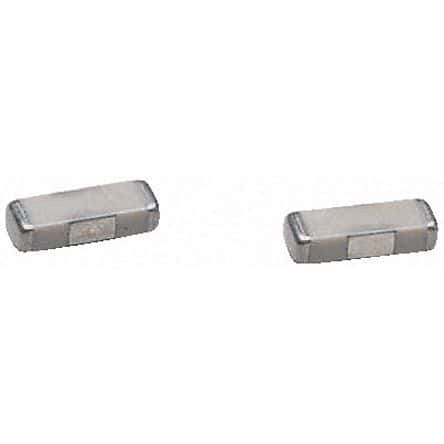

Product Images
