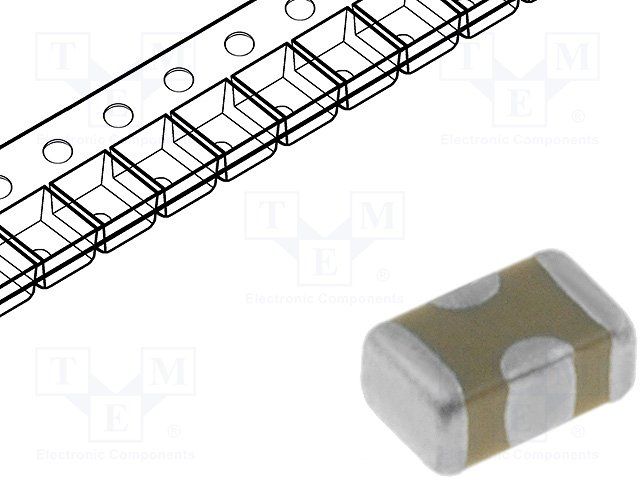

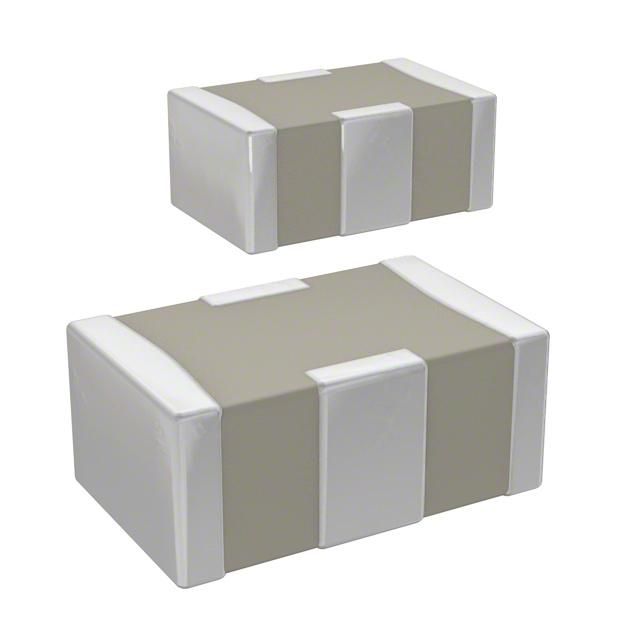

Feed-through ceramic capacitor with 4.7µF capacitance and 10V DC voltage rating. Features a 20% tolerance, 6A current rating, and 5mΩ DC resistance. Surface mountable in an 0805 (2012 metric) case code, this component operates from -40°C to 85°C. RoHS compliant and lead-free.
Package0805
Voltage10V
Current6A
Capacitance4.7uF
Quick Jump:
Technical Specifications
Murata NFM21PC475B1A3D technical specifications.
General
Capacitance
4.7uF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Current
6A
Current Rating
6A
DC Resistance (DCR)
5mR
Depth
1.25mm
Height
0.85mm
Lead Free
Lead Free
Length
2mm
Max Current Rating
6A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
10V
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EMIFIL®, NFM21PC
Termination
Flat
Thickness
850um
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Width
1.25mm
Compliance
RoHS
Compliant
