Board mount DC-DC regulated power supply module, 1W hybrid converter with dual outputs. Features SIP package, 15V nominal input, and ±5V outputs, each delivering 100mA. Operates with 13.5V to 16.5V input, offering 71% efficiency and 1kV isolation. Rated UL94 V-0, with a wide operating temperature range of -40°C to 85°C.
PackageSIP
MountingThrough Hole
Power500mW
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Murata NMA1505SC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Murata NMA1505SC technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 100mA |
| Current - Output 2 | 100mA |
| Depth | 19.5mm |
| Efficiency | 71% |
| Flammability Rating | UL94 V-0 |
| Height | 0.39inch |
| Isolation Voltage | 1kV |
| Length | 0.77inch |
| Max Input Voltage (DC) | 16.5V |
| Min Input Voltage (DC) | 13.5V |
| Max Input Voltage | 16.5V |
| Min Input Voltage | 13.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Output Power | 1W |
| Max Power Dissipation | 1W |
| Mount | Through Hole |
| Nominal Input Voltage | 15V |
| Nominal Output Voltage | -5V |
| Number of Outputs | 2 |
| Operating Supply Voltage | 15V |
| Output Current | 100mA |
| Output Power | 500mW |
| Output Voltage | 5V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | NMA |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Width | 0.24inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata NMA1505SC Datasheet
Download the complete datasheet for Murata NMA1505SC to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

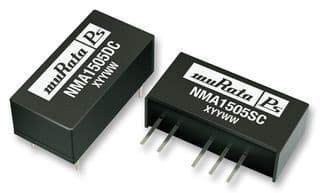

Product Images
