Board mount DC-DC converter module, 1W maximum output power, featuring dual 12V and -12V outputs, each with 42mA maximum current. Operates from a 13.5V to 16.5V DC input range with a nominal input of 15V. Achieves 78% efficiency and provides 1kV isolation voltage. Housed in a SIP package with dimensions of 0.77" L x 0.24" W x 0.39" H, rated UL94 V-0 for flammability. Operating temperature range spans -40°C to 85°C.
PackageSIP
Power500mW
Quick Jump:
Technical Specifications
Murata NMA1512SC technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 42mA |
| Current - Output 2 | 42mA |
| Depth | 19.5mm |
| Efficiency | 78% |
| Flammability Rating | UL94 V-0 |
| Height | 0.39inch |
| Isolation Voltage | 1kV |
| Length | 0.77inch |
| Max Input Voltage (DC) | 16.5V |
| Min Input Voltage (DC) | 13.5V |
| Max Input Voltage | 16.5V |
| Min Input Voltage | 13.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 42mA |
| Max Output Power | 1W |
| Max Power Dissipation | 1W |
| Nominal Input Voltage | 15V |
| Nominal Output Voltage | -12V |
| Number of Outputs | 2 |
| Output Current | 42mA |
| Output Power | 500mW |
| Output Voltage | 12V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | NMA |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Width | 0.24inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata NMA1512SC Datasheet
Download the complete datasheet for Murata NMA1512SC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

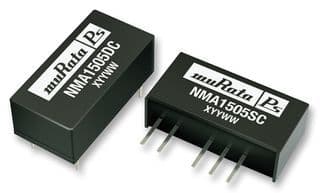

Product Images
