Board mount DC-DC converter, 1W output power, 15V nominal output voltage, and 66mA maximum output current. Features a 4.5V to 5.5V DC input range, 1kV isolation voltage, and 80% efficiency. Packaged in a DIP form factor with through-hole mounting, operating temperature range of -40°C to 85°C, and UL94 V-0 flammability rating.
PackageDIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Murata NME0515DC technical specifications.
General
| Package/Case | DIP |
| Current - Output 1 | 66mA |
| Depth | 11.5mm |
| Efficiency | 80% |
| Flammability Rating | UL94 V-0 |
| Height | 6.8mm |
| Isolation Voltage | 1kV |
| Length | 0.39inch |
| Max Input Voltage (DC) | 5.5V |
| Min Input Voltage (DC) | 4.5V |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 66mA |
| Max Output Power | 1W |
| Max Power Dissipation | 1W |
| Mount | Through Hole |
| Nominal Input Voltage | 5V |
| Nominal Output Voltage | 15V |
| Number of Outputs | 1 |
| Output Current | 66mA |
| Output Power | 1W |
| Output Voltage | 15V |
| Package Quantity | 35 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | NME |
| Voltage - Output 1 | 15V |
| Width | 9.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata NME0515DC Datasheet
Download the complete datasheet for Murata NME0515DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

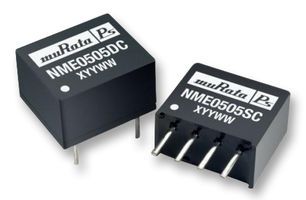

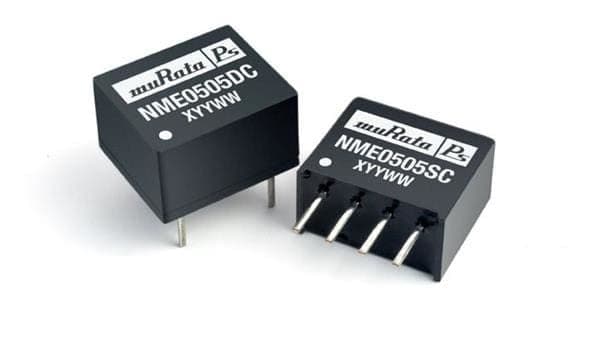

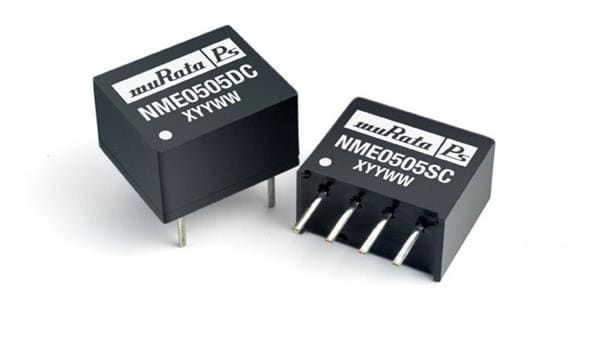

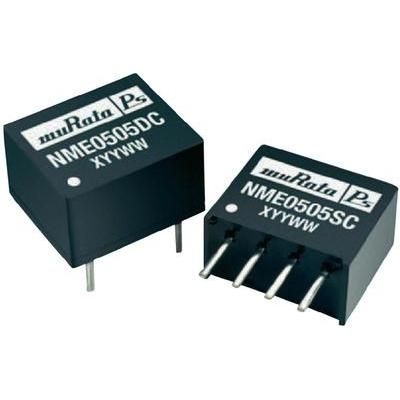

Product Images
