Board mount DC-DC converter module, 1W hybrid power supply with dual 5V and -5V outputs, each rated for 100mA. Features a 10.8V to 13.2V DC input range, 1kV isolation voltage, and 69% efficiency. Encased in an SMD/SMT package with dimensions of 7.7mm (L) x 15.24mm (W) x 0.26inch (H), it operates from -40°C to 85°C and meets UL94 V-0 flammability standards. This RoHS compliant component is designed for surface mounting.
PackageSMD/SMT
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Murata NTA1205MC technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
100mA
Current - Output 2
100mA
Depth
7.7mm
Efficiency
69%
Flammability Rating
UL94 V-0
Height
0.26inch
Isolation Voltage
1kV
Lead Free
Lead Free
Length
7.7mm
Max Input Voltage (DC)
13.2V
Min Input Voltage (DC)
10.8V
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Power
1W
Max Power Dissipation
1W
Mount
Surface Mount
Nominal Input Voltage
12V
Number of Outputs
2
Output Current
100mA
Output Power
500mW
Output Voltage
5V
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
NTA
Voltage - Output 1
5V
Voltage - Output 2
-5V
Width
15.24mm
Compliance
RoHS
Compliant
Datasheet
Murata NTA1205MC Datasheet
Download the complete datasheet for Murata NTA1205MC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

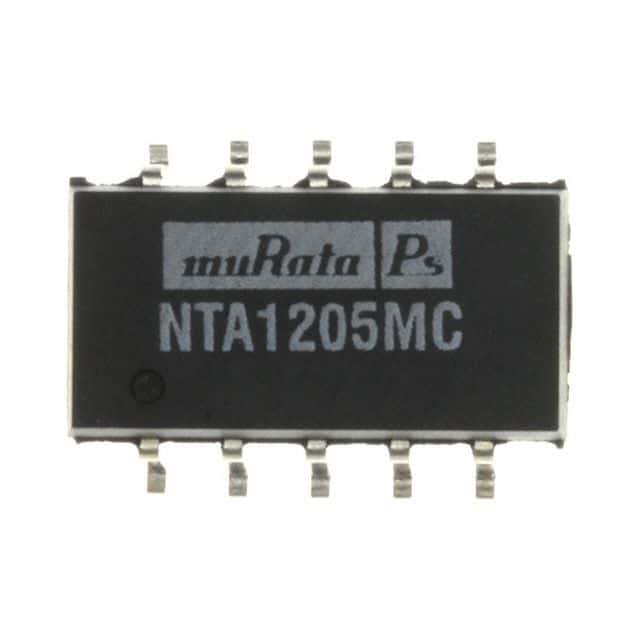

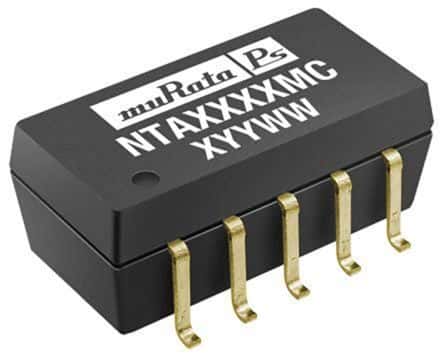

Product Images
