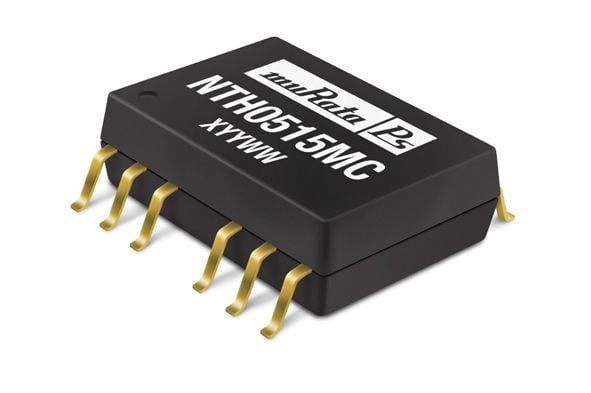

2W, 2-output DC-DC converter module for surface mount applications. Features isolated power conversion with 1kV isolation voltage, operating from a 10.8V to 13.2V DC input. Delivers dual 5V and -5V outputs, each with a maximum current of 200mA. Achieves 80% efficiency and operates across a -40°C to 85°C temperature range. Packaged in an SMD/SMT case with dimensions of 17.78mm (L) x 12.7mm (W) x 12.7mm (D). RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata NTH1205MC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Murata NTH1205MC technical specifications.
| Package/Case | SMD/SMT |
| Current - Output 1 | 200mA |
| Current - Output 2 | 200mA |
| Depth | 12.7mm |
| Efficiency | 80% |
| Height | 0.23inch |
| Isolation | Isolated |
| Isolation Voltage | 1kV |
| Lead Free | Lead Free |
| Length | 17.78mm |
| Max Input Voltage (DC) | 13.2V |
| Min Input Voltage (DC) | 10.8V |
| Max Input Voltage | 13.2V |
| Min Input Voltage | 10.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Output Power | 2W |
| Max Power Dissipation | 2W |
| Mount | Surface Mount |
| Nominal Input Voltage | 12V |
| Nominal Output Voltage | -5V |
| Number of Outputs | 2 |
| Output Current | 200mA |
| Output Power | 2W |
| Output Voltage | 5V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | NTH |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Weight | 2.75g |
| Width | 0.5inch |
| RoHS | Compliant |
