10k Ohm NTC thermistor with 1% resistance tolerance, designed for through-hole mounting. Features a bead package with radial leads, 0.4mm lead diameter, and 2.5mm lead pitch. Operates within a temperature range of -40°C to 125°C, with a maximum current rating of 120uA and maximum power dissipation of 7.5mW. Dimensions include 5mm length, 4mm width, and 2mm height. This lead-free, RoHS compliant component is supplied in bulk packaging.
Resistance10kR
MountingThrough Hole
Quick Jump:
Technical Specifications
Murata NXRT15XH103FA1B030 technical specifications.
General
| Height | 2mm |
| Lead Diameter | 0.4mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Length | 5mm |
| Max Current Rating | 120uA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 7.5mW |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Resistance | 10kR |
| Resistance Tolerance | 1% |
| RoHS Compliant | Yes |
| Series | NXR |
| Termination | Radial |
| Tolerance | 1% |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata NXRT15XH103FA1B030 Datasheet
Download the complete datasheet for Murata NXRT15XH103FA1B030 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

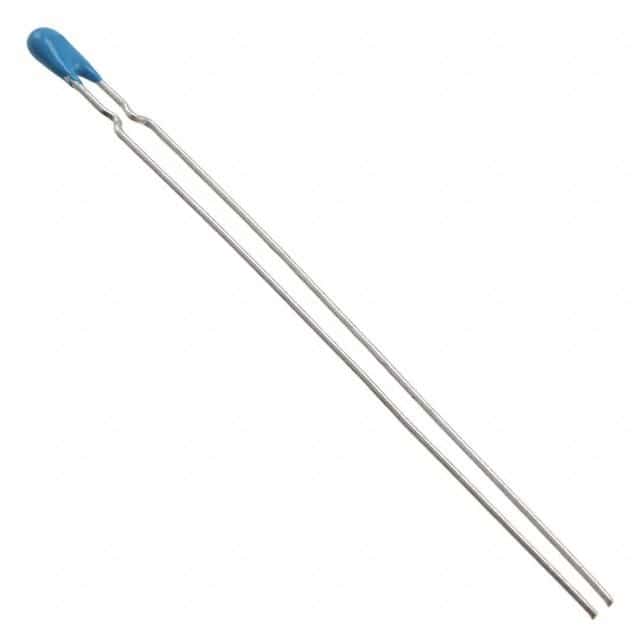

Product Images
