Board mount DC-DC converter module, 80W maximum output power, 16A maximum output current. Features adjustable output voltage from 750mV to 5.5V, with a nominal output of 5.5V. Operates from an 8.3V to 14V DC input, nominal 12V. Offers 94% efficiency and includes UVLO, OCP, OTP, and SCP protection. Packaged in a SIP form factor with through-hole mounting.
PackageSIP
MountingThrough Hole
Power55W
Quick Jump:
Technical Specifications
Murata OKX-T/16-D12P-C technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 10A |
| Current - Output 2 | 10A |
| Current - Output 3 | 10A |
| Depth | 50.8mm |
| Efficiency | 94% |
| Features | UVLO, OCP, OTP, SCP |
| Height | 0.5inch |
| Length | 2inch |
| Max Input Voltage (DC) | 14V |
| Min Input Voltage (DC) | 8.3V |
| Max Input Voltage | 14V |
| Min Input Voltage | 8.3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 16A |
| Max Output Power | 80W |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 750mV |
| Max Power Dissipation | 80W |
| Mount | Through Hole |
| Nominal Input Voltage | 12V |
| Nominal Output Voltage | 5.5V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 12V |
| Output Current | 16A |
| Output Power | 55W |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 114 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Okami™ OKX-T/16-D12 |
| Voltage - Output 1 | 5.5V |
| Voltage - Output 2 | 5.5V |
| Voltage - Output 3 | 5.5V |
| Width | 0.37inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata OKX-T/16-D12P-C Datasheet
Download the complete datasheet for Murata OKX-T/16-D12P-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

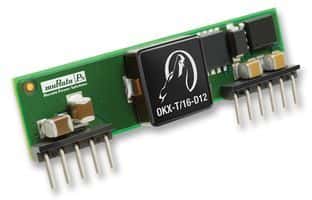

Product Images
