Board mount DC-DC converter, 50W output power, 10A maximum output current, and 5.5V nominal output voltage. Features include UVLO, OCP, OTP, and SCP protection. Operating input voltage range is 8.3V to 14V DC, with a nominal input of 12V. This SIP-packaged module offers high efficiency up to 94.5% and operates across a temperature range of -40°C to 85°C.
PackageSIP
MountingThrough Hole
Power55W
Quick Jump:
Technical Specifications
Murata OKX2-T/10-D12N-C technical specifications.
General
Package/Case
SIP
Current - Output 1
10A
Current - Output 2
10A
Current - Output 3
10A
Depth
50.8mm
Efficiency
94.5%
Features
UVLO, OCP, OTP, SCP
Height
0.5inch
Length
2inch
Max Input Voltage (DC)
14V
Min Input Voltage (DC)
8.3V
Max Input Voltage
14V
Min Input Voltage
8.3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
10A
Max Output Power
50W
Max Output Voltage
5.5V
Min Output Voltage
750mV
Max Power Dissipation
50W
Mount
Through Hole
Nominal Input Voltage
12V
Nominal Output Voltage
5.5V
Number of Outputs
1
Operating Supply Voltage
12V
Output Current
10A
Output Power
55W
Output Voltage
5.5V
Package Quantity
114
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Okami™ OKX-T/10-D12
Voltage - Output 1
5.5V
Voltage - Output 2
5.5V
Voltage - Output 3
5.5V
Width
0.37inch
Compliance
RoHS
Compliant
Datasheet
Murata OKX2-T/10-D12N-C Datasheet
Download the complete datasheet for Murata OKX2-T/10-D12N-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

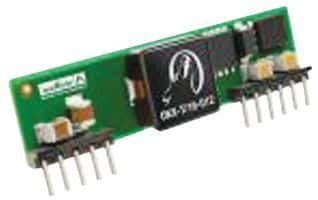

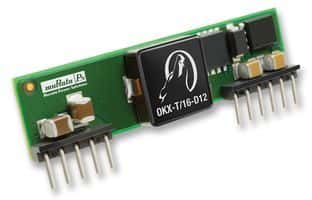

Product Images
