Murata
PKLCS1212E24A0-R1
Audio Sounder Piezo 12.5Vo-p 1.5Vo-p 75dBA Solder Pad Surface Mount Plastic T/R
Frequency2.4kHz
Capacitance28nF
Voltage Rating1.5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata PKLCS1212E24A0-R1 technical specifications.
General
| Capacitance | 28nF |
| Diameter | 12mm |
| Frequency | 2.4kHz |
| Height | 3mm |
| Lead Free | Lead Free |
| Length | 12mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 12.5V |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Self Resonant Frequency | 2.4kHz |
| Series | PK |
| Termination | Solder |
| Voltage Rating | 1.5V |
| Washable | No |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata PKLCS1212E24A0-R1 Datasheet
Download the complete datasheet for Murata PKLCS1212E24A0-R1 to view detailed technical specifications.
No datasheet is available for this part.

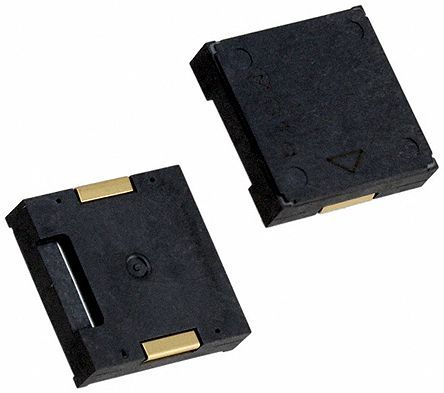

Product Images
