Surface mount piezo buzzer with a 4kHz frequency and 75dB sound output. Features a 12mm x 12mm x 3mm footprint, operating between -20°C and 70°C. Accepts a nominal input voltage of 3V, with a maximum supply voltage of 25V. Terminated with solder pads and supplied on tape and reel.
Frequency4kHz
Voltage Rating1.5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata PKLCS1212E4001-R1 technical specifications.
General
| Depth | 12mm |
| Diameter | 12mm |
| Frequency | 4kHz |
| Height | 3mm |
| Lead Free | Lead Free |
| Length | 12mm |
| Max Frequency | 4kHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage | 25V |
| Mount | Surface Mount |
| Nominal Input Voltage | 3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Self Resonant Frequency | 4kHz |
| Series | PK |
| Termination | Solder |
| Voltage Rating | 1.5V |
| DC Rated Voltage | 25V |
| Washable | No |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata PKLCS1212E4001-R1 Datasheet
Download the complete datasheet for Murata PKLCS1212E4001-R1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

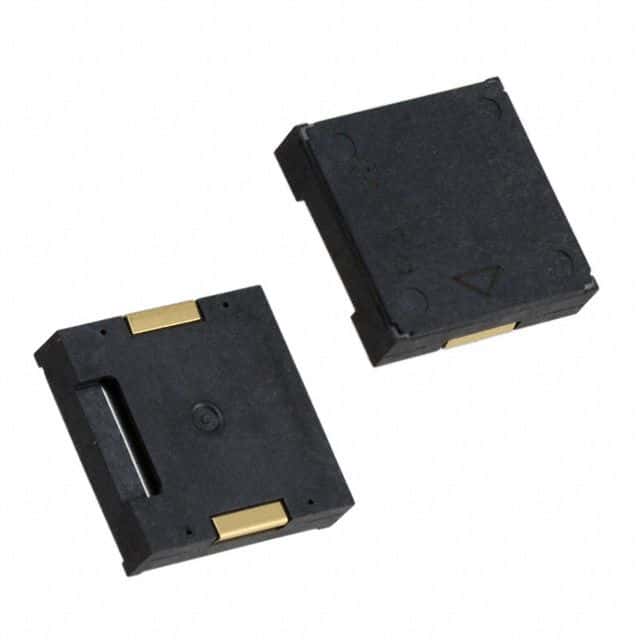

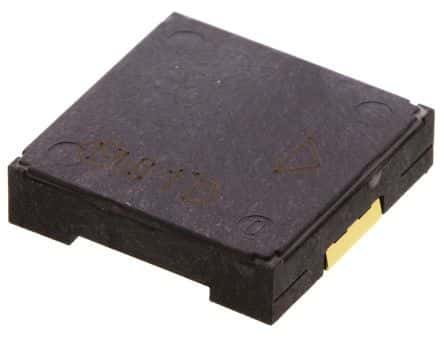

Product Images
