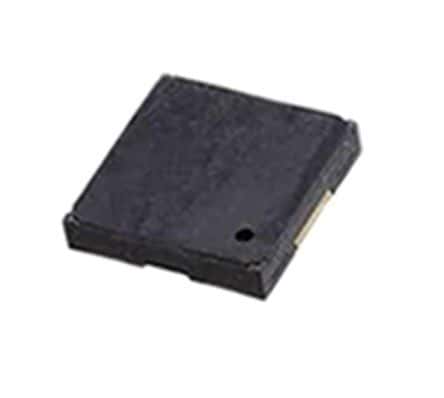

Surface mount piezo sounder with a 4kHz frequency and 4kHz self-resonant frequency. Features a 12.5V DC rated voltage, 12.5V peak operating voltage, and a sound output of 65dBA. Operating temperature range is -40°C to 85°C. Terminates with solder pads and is supplied on tape and reel.
Sign in to ask questions about the Murata PKMCS0909E4000-R1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Murata PKMCS0909E4000-R1 technical specifications.
| Depth | 9mm |
| Frequency | 4kHz |
| Height | 1.9mm |
| Lead Free | Lead Free |
| Length | 9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 12.5V |
| Min Supply Voltage (DC) | -12.5V |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Self Resonant Frequency | 4kHz |
| Series | PK |
| Termination | Solder |
| Voltage Rating | 1.5V |
| DC Rated Voltage | 12.5V |
| Width | 9mm |
| RoHS | Compliant |
