PTC Thermistor, 470 Ohm resistance with 50% tolerance, designed for surface mount applications. Features a 0603 (1608 metric) case code with solder pad termination. Operates within a temperature range of -20°C to 130°C, with a maximum operating voltage of 32V and a current rating of 100uA. Packaged in tape and reel for automated assembly.
Package0603
Voltage32V
Resistance470R
Current Rating100uA
Quick Jump:
Technical Specifications
Murata PRF18BC471QB1RB technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Current Rating
100uA
Depth
0.8mm
Height
0.8mm
Lead Free
Lead Free
Length
1.6mm
Max Operating Temperature
130°C
Min Operating Temperature
-20°C
Mount
Surface Mount
Operating Supply Voltage
32V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
470R
Resistance Tolerance
50%
RoHS Compliant
Yes
Series
POSISTOR® PRF18/21
Termination
SMD/SMT
Thickness
800um
Tolerance
50%
Voltage
32V
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Murata PRF18BC471QB1RB Datasheet
Download the complete datasheet for Murata PRF18BC471QB1RB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

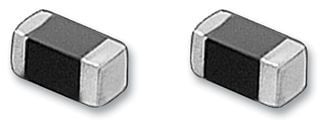

Product Images
