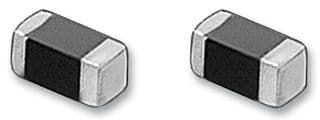

PTC Thermistor, 470 Ohm resistance with 50% tolerance, designed for surface mount applications. Features a 0603 (1608 metric) case code with solder pad terminations. Operates within a temperature range of -20°C to 110°C, with a maximum supply voltage of 32V and a current rating of 100uA. Packaged in tape and reel for automated assembly.
Package0603
Voltage32V
Resistance470R
Current Rating100uA
Quick Jump:
Technical Specifications
Murata PRF18BE471QB1RB technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Current Rating
100uA
Depth
0.8mm
Height
0.8mm
Lead Free
Lead Free
Length
1.6mm
Max Operating Temperature
110°C
Min Operating Temperature
-20°C
Max Supply Voltage (DC)
32V
Mount
Surface Mount
Operating Supply Voltage
32V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
470R
Resistance Tolerance
50%
RoHS Compliant
Yes
Series
POSISTOR® PRF18/21
Termination
SMD/SMT
Tolerance
50%
Voltage
32V
Width
0.8mm
Compliance
RoHS
Compliant
