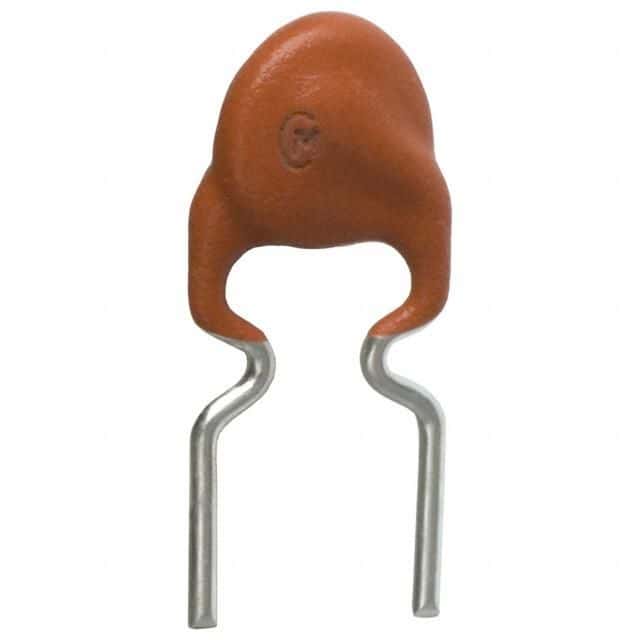

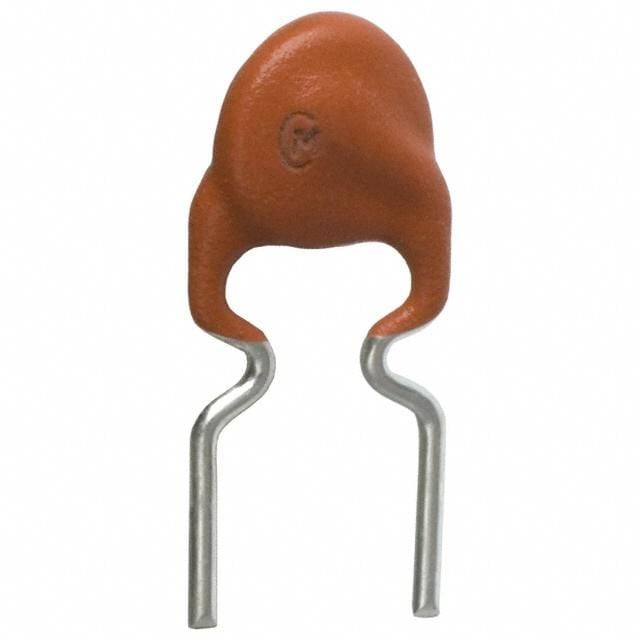

The Murata PTGL04AS100K2N51B0 is a thermistor with a maximum operating temperature of 85°C and a minimum operating temperature of -30°C. It has a current rating of 1.5A and a resistance of 100R. The device is packaged in a radial package with a diameter of 4.5mm and a height of 9.5mm. It is RoHS compliant and has a tolerance of 10%. The thermistor is designed for use in through hole mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata PTGL04AS100K2N51B0 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Current Rating | 1.5A |
| Depth | 3.5mm |
| Diameter | 4.5mm |
| Height | 9.5mm |
| Hold Current | 122mA |
| Lead Free | Exempt |
| Lead Pitch | 5mm |
| Max Current Rating | 1.5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Resistance | 100R |
| RoHS Compliant | Yes |
| Series | POSISTOR®, PTGL |
| Termination | Radial |
| Thickness | 3.5mm |
| Tolerance | 10% |
| Trip Current | 240mA |
| Voltage | 30V |
| RoHS | Compliant |
